Label

It is a tool for writing field titles and descriptions. Label is used to specify what the fields are. However, it can also be used to group a field in a header in a form. In addition, if it is desired to add a warning or note to the form, notes can be written on the forms by adding the label tool.

bulb-icon.png The label has no character limit, it is not saved in the database but appears in the form.

Appearance in Toolbox

Appearance in Free Form

 Appearance in Responsive Form


 mceclip1.png mceclip2.png



Compatibility

Free Form Responsive Form Mobile
icons8-check-circle-48.png icons8-check-circle-48.png icons8-check-circle-48.png



Features of the Label tool

Type(Field Type): Displays the field type of the added form tool. The value here cannot be changed.

Text: The value to be displayed in the label should be written.

Text Size: The size of the values to be entered in the Hour field is determined from this field.


Help Text : It is the text entered for the explanation to appear when the mouse is hovered over the form tool.



Icon : An icon is assigned to the area to be added, its color and position are selected.



Text Fonts : Changing the font is provided.



Text Type : Type of text; bold, italic, underline, place of text; right-justified, left-justified, or centered.

Color : Adjusts the color of the text inside and/or inside the form tool.


Height : Adjusts the height and width of the form tool (the Width field has been removed from Responsive Forms).

Fit Horizontal : Fits the form tool horizontally to the full screen on the user's screen.

Pin Right : Pins the form tool to the right.

Display : Allows the form tool not to appear on the Client screen.



Actions that can be used in the Label tool

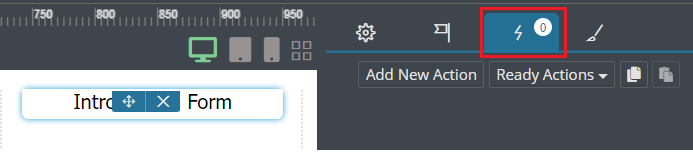

There are different actions for each added form element on the form page. To view the actions defined for the Label tool, first select the label area, then the actions menu on the right panel opens.f.png

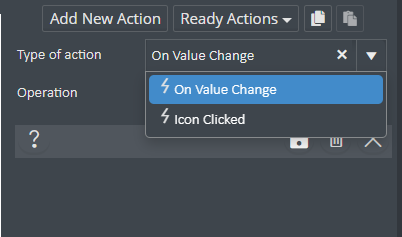

The actions and details that can be used in the Label tool are as follows.


On Value Change : It works when the value inside the Label field changes.

Icon Clicked : If an icon has been added to the Label field, the action will run when this icon is clicked.
